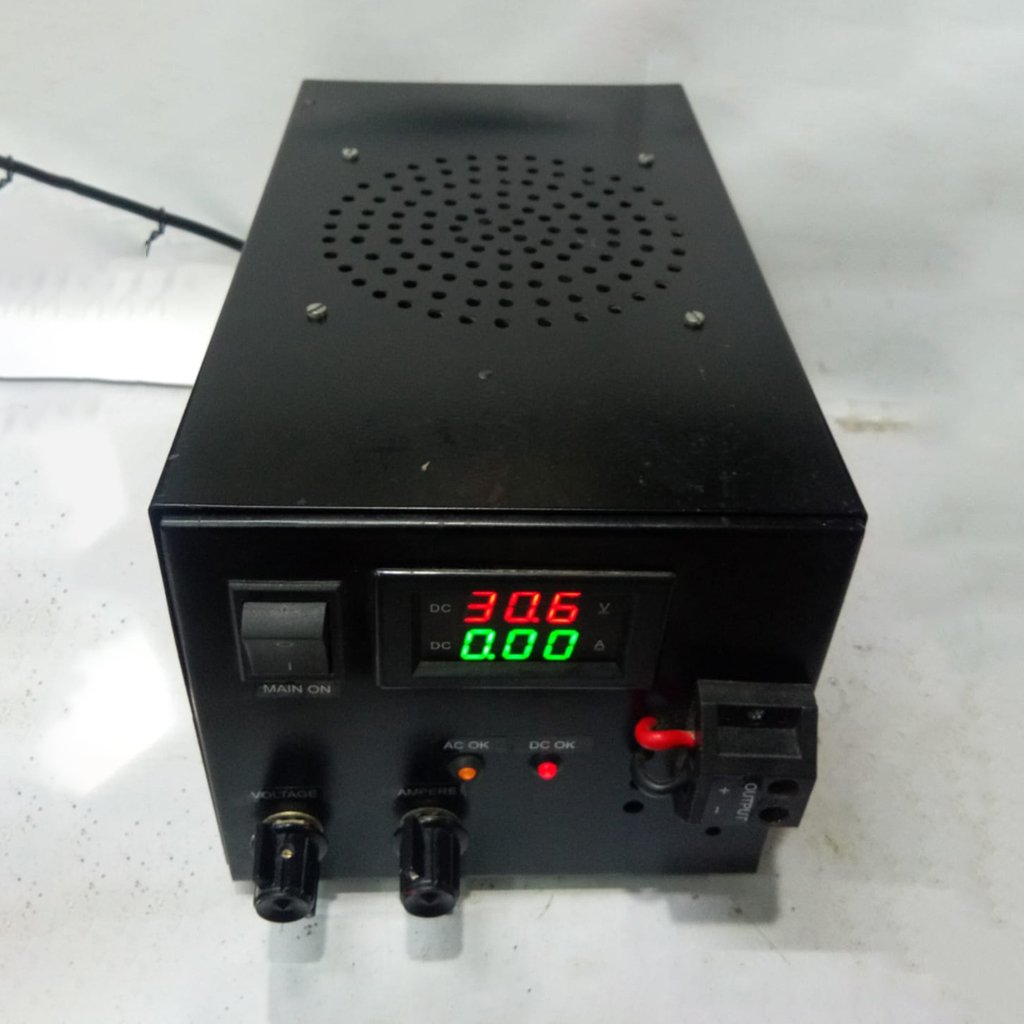

DC Power Supply
Industrial DC Power Supply
Our high-performance DC Power Supply units are engineered for precision and durability. Designed with a universal AC input and advanced protection circuitry, these units provide a stable and reliable power source for industrial automation, telecommunications, and sensitive electronic equipment.
- Universal AC input / Full range
- High Power Density (Up to 5 KW)
- Built-in Fan ON/OFF control with LED Indicator
- Forced air cooling via built-in DC Fan
- 1 Year Warranty & 284K hrs MTBF
Technical Specifications
| INPUT PARAMETERS | |
|---|---|
| Voltage Range | 230V AC / 415V AC Any |
| Frequency Range | 47Hz to 63Hz |
| Power Factor (Typ.) | PF > 0.95/230VAC | PF > 0.98/115VAC at full load |
| Efficiency (Typ.) | 87% |
| AC Current (Typ.) | 3.6A/115VAC | 1.8A/230VAC |
| Inrush Current (Typ.) | 25A/115VAC | 40A/230VAC |
| Leakage Current | < 2mA / 240V |
| OUTPUT PARAMETERS | |
| DC Voltage | As per requirement (Any) |
| Rated Power | Up to 5 KW |
| Ripple & Noise (max.) | 150mVp-p |
| Voltage Tolerance | +/- 1.0% |
| Line Regulation | +/- 0.2% |
| Hold Up Time (Typ.) | 20ms / 230VAC |
| PROTECTION & SAFETY | |
| Overload Protection | 105 - 135% rated output power (Hiccup mode, auto-recovery) |
| Over Voltage Protection | 5.5V DC (Standard trip point) |
| Over Temperature | Heatsink detection (Auto-shutdown & auto-recovery) |
| Withstand Voltage | I/P-O/P: 3KVAC | I/P-FG: 1.5KVAC | O/P-FG: 0.5KVAC |
| OTHERS | |
| Working Temp / Humidity | -20 to +70 Degree Celsius | 20 - 90% RH non-condensing |
| MTBF | 284K hrs min. |
| Dimensions | 9” x 6” x 5” |
| Weight | 0.75 KG |
